Evolve® ERL2

The Evolve® ERL2 Series Cobra Head with advanced reflective optics is optimized for customers seeking local, collector and major roadway solutions.

DLC Standard cULus Assembled in USA BAA IDA IK Rated IP Rated Controls Enabled Wet Rated

Features & Benefits

  • Advanced Reflector Optic design optimizes application efficiency, minimizes glare and provides superior cut off with significantly less wasted light
  • Excellent light control which aims light directly on primary target, optimizing watts
  • Flat, tempered glass lens is less prone to dirt accumulation resulting in < 1% LDD per year over 10 years
  • Controls ready design: All Cobra heads have a standard ANSI 7 pin PE Receptacle
  • Designed and manufactured in the USA
  • Offerings to 30,000 Lumens with up to 133 LPW


Voltage Offering
120-277V, 347-480V
Lumen Range
16,000 - 30,000lm
CCT Offering
2700K, 3000K, 4000K
CRI Offering
Mounting Options
Adjustable for 1.25 to 2.0 in. nominal mounting pipe, 4 Bolt Slipfitter (option)
Wattage Range
120 - 278 W
Efficacy Range
108 - 133 LPW
Color Offering
Gray, Black, Dark Bronze, White, RAL and custom colors available
Optics & Distributions
Type II Narrow, Type II Wide, Type II Enhanced backlight, Type III, Type IV
Controls & Sensors
0-10V Dimming, 7-pin PE Receptacle, LightGrid™ Compatible, LL PE available (option)
UL, cUL, IDA, NOM, DLC Standard, FCC
RoHS, IK, IP65 Standard, IP66 Optional, Wet, BAA
Operating Temp
-40 to 50 °C
Lumen Maintenance Rating
L95 @ 60,000 hours
5 year limited warranty, 10 year optional warranty

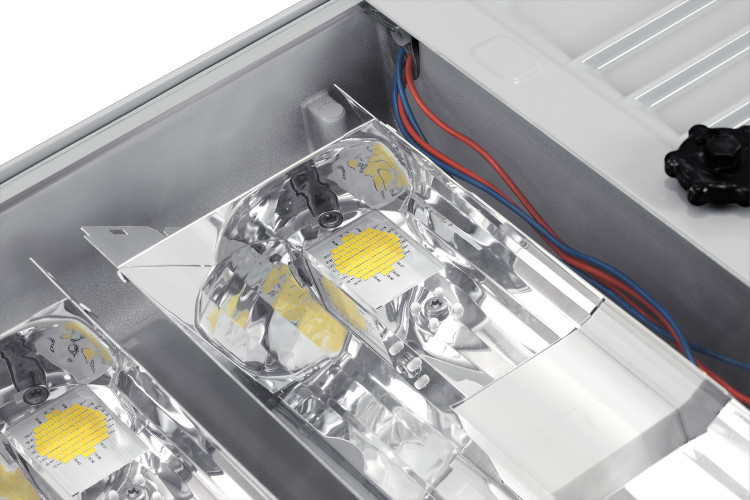

Custom Engineered Reflective Optic Technology

Optimizes application efficiency, minimizes driver glare, and 'shapes' the light to put the light where it is needed.

Designed and Assembled in The USA

The entire Current Roadway street light portfolio is designed and assembled by our industry leading team in our state of the art manufacturing center in Hendersonville, NC.

LightGrid™ Compatible

Current's entire Roadway products portfolio is compatible with LightGrid. LightGrid allows municipalities and transportation departments the ability to remotely monitor energy consumption, detect failures, dim fixtures remotely and achieve real time energy metering.
