Evolve® EFM

The EFM is our mid-lumen option for flood lighting built for durability. Ideal for general flood lighting and designed to replace up to a 400W HID fixture.
Daintree Wireless Lighting Controls Icon DLC Premium DLC Standard cULus UL 5 Year Warranty Assembled in USA BAA IK Rated IP Rated Title 24 RoHS

Features & Benefits

  • Daintree® Wireless Controls options for code compliance and additional energy savings
  • Flat glass lens with optimized reflective optics
  • Light weight at 25 lbs
  • Optional 3G vibration rated mounting
  • Corrosion resistance polyester powder paint
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Product Technology
Daintree®
Voltage Offering
120-277V, 277-480V, 347-480V
Lumen Range
4,400 - 27,000lm
CCT Offering
3000K, 4000K, 5000K
CRI Offering
70
Mounting Options
Knuckle Slipfitter, Knuckle Wall Mount, Trunnion
Wattage Range
30 - 196 W
Efficacy Range
104 - 167 LPW
Color Offering
Black, Dark Bronze, Gray, White
Optics & Distributions
NEMA 6x5, NEMA 6x6, NEMA 7x6, NEMA 7x7, Type III, 20° Spot
Controls & Sensors
0-10V Dimming, 7-pin PE Receptacle, Integral Sensor, Daintree Integral Sensor
Certifications
UL, cUL, DLC Standard, DLC Premium, Title 24, FCC
Ratings
RoHS, IK, IP66, Wet, BAA
Operating Temp
-40 to 50 °C
Lumen Maintenance Rating
L91 @ 60,000 hours
Warranty
5 year limited warranty

Product Documents

Office with lines showing connections for intelligent controls

Intelligent Controls

Daintree® Wireless Controls provide out-of-the-box integration with for enhanced functionality and energy savings. Daintree® Wireless Controls provides additional energy savings and the infrastructure to grow into the world of IoT today, or in the future.

Reflective Optics with Flat Glass Lens

Custom engineered optics for high uniformity with further throw. Optimized to have superior cut-off while limiting wasted light. These optics are enclosed in flat, tempered smooth glass surface which is less prone to dirt accumulation at a rate of 1% per year compared to 3.8% per year for non-glass molded lens.

Robust Mechanical Design

Fixtures are designed with a wide range of photometric options and scalable lumen levels. Vibration testing is performed in accordance with industry standards with fully sealed optical enclosures. 6kV/3kA surge is minimum in all fixtures with optional 10kV/5kA and 20kV/10kA surge in most fixtures.

Application Photos

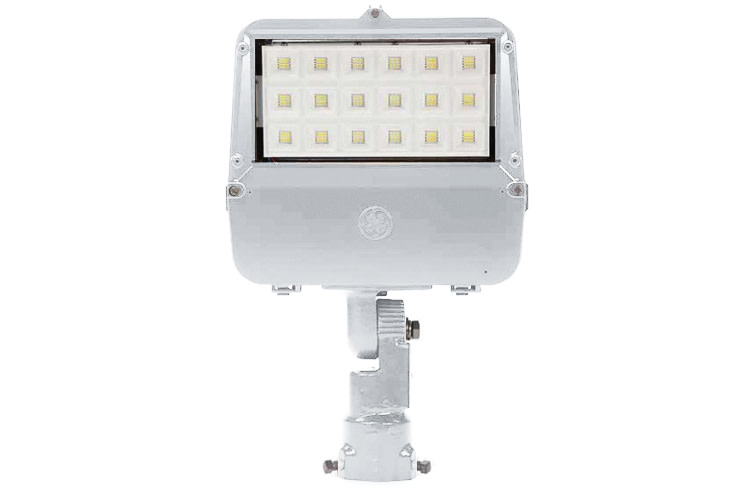

Evolve EFM Flood Light

DLC qualified models available. Please refer to http://www.designlights.org/QPL for complete information.
