Enhanced

Lumination® Allusion Wall Mount

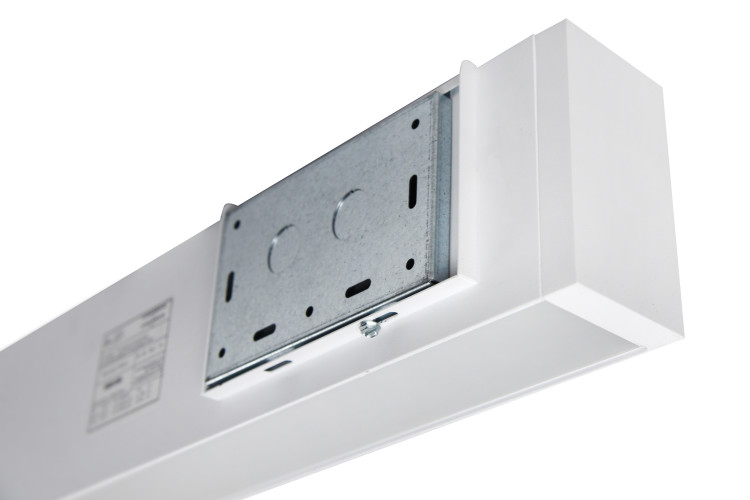

Architectural wall mount linear slots install easily onto the wall either stand alone or continuous, with high performance from TriGain® technology.
Daintree Wireless Lighting Controls Icon TriGain cULus 5 Year Warranty TAA RoHS

Features & Benefits

  • TriGain® Technology for industry leading color quality with no efficacy loss
  • Daintree® Wireless Controls options for code compliance and additional energy savings
  • Emergency egress lighting with battery back-up
  • Versatile options and contemporary aesthetic for design flexibility
  • Separately controlled UP and DOWN light levels
  • Ease of install and maintenance with quick connections and replaceable components
Where To Buy
SPEC SHEET

Specifications

Product Technology
Daintree®, TriGain®
Family Modules/Configurations
2ft, 4ft, 5ft, 6ft, 8ft, Continuous
Voltage Offering
120-277V, 347V
Lumen Range
1,600 - 16,000lm
CCT Offering
3000K, 3500K, 4000K
CRI Offering
90 TriGain®, 83
Mounting Options
Wall, Surface
Wattage Range
15 - 155 W
Efficacy Range
88 - 140 LPW
Color Offering
White, Silver, Black, Custom
Optics & Distributions
Down Distribution Patterns: Medium flush, Louver (no lens), 1/2” Glow or Wall Wash Lens, Up Distribution Patterns: Asymmetric
Controls & Sensors
0-10V Dimming, Daintree Wireless Enabled
Certifications
cULus, FCC
Ratings
RoHS, IP20, Damp, TAA, USMCA
Operating Temp
-10 to 30 °C
Lumen Maintenance Rating
L75 @ 50,000 hours
Warranty
5 year limited warranty

Product Documents

Bins of brightly colored fruit at a supermarket

Superior Color Quality With No Efficacy Loss

Current’s TriGain® technology, with its patented narrow-band red emission, provides best-in-class color & efficiency. With trends in color quality towards preference in fidelity & saturation, ANSI/IES TM-30 provides an alternative to CRI. Few light sources can meet the criteria in TM-30 Annex E, and TriGain® technology stands alone as the only to do so with high efficacy.

Intelligent Controls

Daintree® Wireless Controls provide out-of-the-box integration for enhanced functionality and energy savings. Daintree Wireless Controls provides additional energy savings and the infrastructure to grow into the world of IoT today, or in the future.

Office with lines showing connections for intelligent controls
Man and woman working at computer

Configurable for Flexible Design Specifications

The Allusion Series Wall Mount is designed for wall mount applications while providing beautiful lines of light. Fixtures can be installed individually or in continuous rows, are available in 2” or 4” widths & 2' to 8' lengths in multiple housing colors. Numerous lensing options, lumen outputs, color temperatures, and separate up/down light control. Allusion Wall Mount is ADA compliant.
