Enhanced

Lumination® Elementaire

Forward-thinking luminaires featuring an advanced edgelit optical system and ultra-thin architectural design to achieve premium performance and aesthetics.
TriGain DLC Premium DLC Standard cULus 5 Year Warranty TAA IK Rated IP Rated Title 24 RoHS

Features & Benefits

  • TriGain® Technology for industry leading color quality with no efficacy loss
  • Ultra-thin profile, modern aesthetic and premium fit and finish will elevate your space to the next level
  • Durable construction utilizing premium optical-grade acrylic light guides and diecast end caps for unbeatable quality
  • Intuitive mounting hardware and integral cord provided for simple and easy installation
  • Luminance uniformity - 2:1 ratio Max to Min vertically provides exceptional photometrics
Where To Buy
SPEC SHEET

Specifications

Product Technology
TriGain®
Family Modules/Configurations
4ft, 6ft, 8ft
Voltage Offering
120-277V
Lumen Range
6,000 - 11,200lm
CCT Offering
3500K, 4000K
CRI Offering
90 TriGain®
Mounting Options
Suspended
Wattage Range
47 - 86 W
Efficacy Range
128 - 134 LPW
Color Offering
White, Black, Silver
Optics & Distributions
Medium, 85% Downlight / 15% Uplight
Controls & Sensors
0-10V Dimming
Certifications
cULus, DLC Premium, DLC Standard, FCC
Ratings
RoHS, IK, IP30, Dry, TAA
Operating Temp
-10 to 35 °C
Lumen Maintenance Rating
L85 @ 50,000 hours
Warranty
5 year limited warranty

Product Documents

Bins of brightly colored fruit at a supermarket

Superior Color Quality With No Efficacy Loss

Current’s TriGain® technology, with its patented narrow-band red emission, provides best-in-class color & efficiency. With trends in color quality towards preference in fidelity & saturation, ANSI/IES TM-30 provides an alternative to CRI. Few light sources can meet the criteria in TM-30 Annex E, and TriGain® technology stands alone as the only to do so with high efficacy.

Reliability You Can Count On

Current's Engineering team prioritizes quality and reliability as #1 in every design. The heartbeat components, LEDs and power supplies, are the main focus when we design and validate our fixtures. What does this mean? You will have peace of mind that a job with Current fixtures is one done right and is built to last. Additionally, 100% of fixtures are tested on the line for critical parameters.

Man holding building plans shaking hands with female contractor

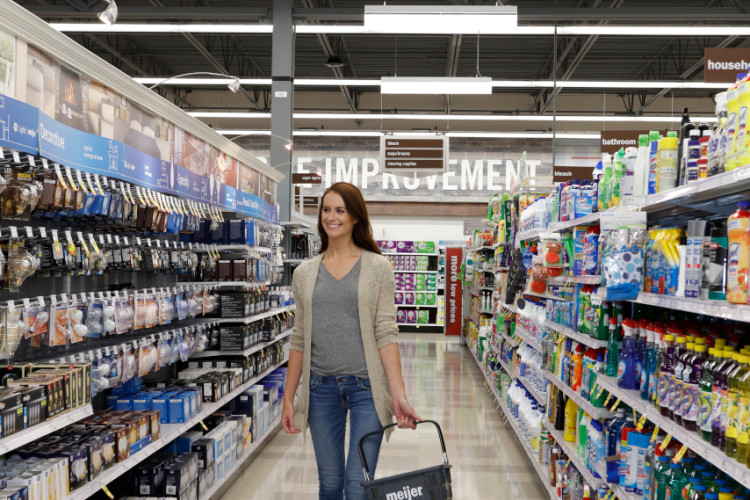

Application Photos

Related Products

Lumination LALS fixture

Lumination®Allusion Suspended

Architectural suspended linear slots that precisely integrate into the ceiling either stand alone or continuous, with high performance from TriGain® technology.
View Product

Lumination® LOP

Commercial suspended indirect/direct fixtures with field-adjustable optics, either stand alone or continuous, with high performance from TriGain® technology.
View Product
