Daintree® WHS20

The Daintree WHS20 is a High-Bay occupancy sensor and photocell sensor. It is available as an integrated component with many Albeo® High Bay LED Lighting fixtures.
Daintree

Features & Benefits

  • Works on Daintree ONE, Daintree EZ Connect and Daintree Networked Wireless Lighting Controls systems
  • Provides Occupancy Sensing and Daylight Harvesting in one device
  • Commissioned with WHR1 Remote, Daintree EZ Connect mobile App or on the Daintree Networked system with Daintree Controls Software web application
  • Available in bottom or side mount on Albeo® High Bay LED Lighting Fixtures
  • Provides Energy Code Compliance
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Controls Platform
Daintree One, Daintree Networked, Daintree EZ Connect
Mounting Options
Bottom mount or side mount
Occupancy Detection
PIR technology
Ambient Light Detection
Yes
Lensing
Low: 8ft (Order separately), Medium: 20ft (Order separately), High: 33ft (Standard), 360° or Aisle
Input Voltage
24 VDC
Current Consumption
< 0.5Wz
Driver Compatibility
Digital Addressable (DA), Digital Power Bus
Radio Properties
2.4GHz, +10dBm transmit power
Connectivity Protocol
Zigbee PRO (HA, BA), Bidirectional IR
LED Status Indicators
Green LED: Occupancy Detection, Red LED: Off for Normal Operation
Operating Temp
-40 to 70 °C
Height
2.11 In
Diameter
3.15 In
Certifications
cULus, CE, DLC, FCC
Ratings
NSF, IP66, IP69K (when installed in similarly rated fixture), Damp
Warranty
5 year limited warranty

Product Documents

Brochures / Catalogs

Whitepapers / Infographics

Installation Guides

Warranties

Daintree Wireless Lighting Controls WHS20 Wireless High Bay Occupancy Sensor and Daylight Photocell

Full-Featured Occupancy Sensing and Dimming Control in One Sensor

Daintree WHS20 sensor features occupancy sensing and 0-10V dimming capability in one cost-effective sensor. The WHS20 also allows daylight harvesting, which saves additional energy costs, especially in warehouses, manufacturing and industrial facilities with skylights.

Pre-installed in Albeo® High Bay LED Lighting Fixtures

Available in bottom mount or side-mount options, the Daintree WHS20 comes pre-installed in many Albeo® High Bay Luminaires. This makes installation fast, easy and compliant with many of the widely accepted Energy Codes.

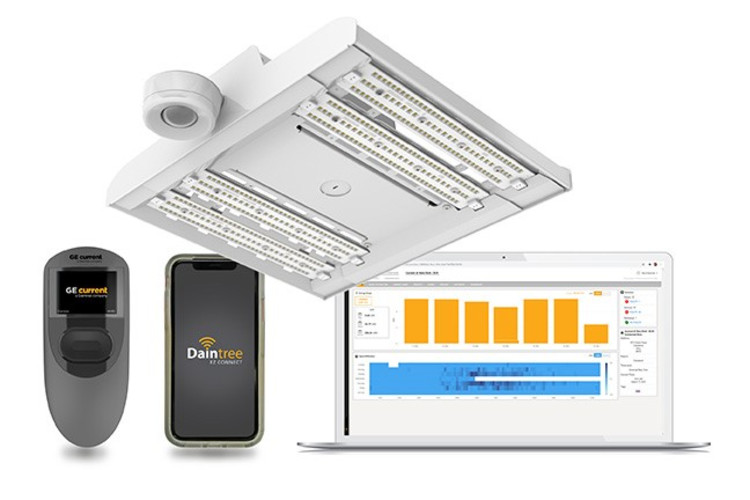

Albeo ABV3 High Bay Lighting Fixture with Daintree WHS20 Wireless Lighting Controls Occupancy Sensor

Scalable, Upgradable & Intuitive

The Daintree Wireless Lighting Controls WHS20 High Bay Sensor can be programmed in standalone Daintree ONE mode with the WHR1 remote. This remote provides effective 2-way communication between the sensor and the remote, ensuring successful programming. The remote provides a easy-to-use graphical interface making the commissioning process easy. The sensor can also be upgraded to zonal control with the Daintree EZ Connect app or full functioning Daintree Networked for full-building scheduling and energy monitoring in with Daintree Controls Software (DCS).
