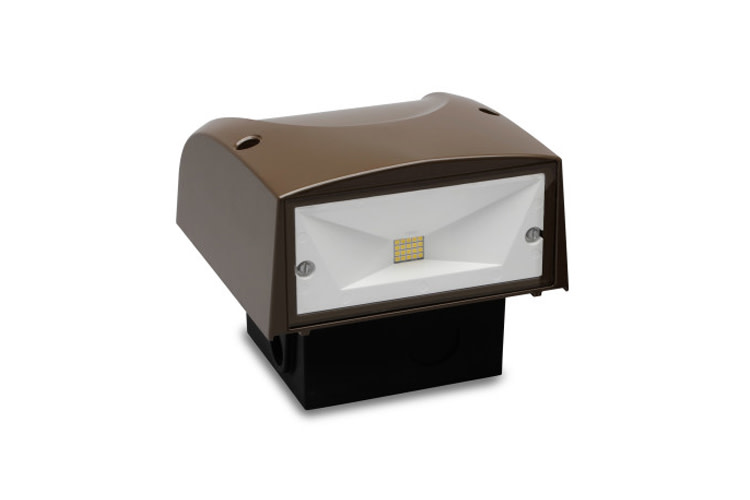

New

Evolve® EWLS

The EWLS offers four lumen levels with excellent energy savings in a long-life LED wall pack. Ideal lighting in a commercial or industrial application.
ProLine DLC Premium DLC Standard cULus UL 5 Year Warranty Assembled in USA BAA IDA IP Rated Title 24 RoHS

Features & Benefits

  • Wireless Controls options for code compliance and additional energy savings
  • Flat glass lens with optimized reflective optics
  • Extremely light weight < 8lbs easy to handle during installation
  • Available with Emergency Battery Backup
  • 3G Vibration rated die cast housing
  • Designed with zero up-light construction, full cut-off
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Voltage Offering
120-277V, 347V
Lumen Range
1,400 - 7,000lm
CCT Offering
2700K, 3000K, 4000K, 5000K
CRI Offering
70
Mounting Options
Wall, Surface, J-Box Mount
Wattage Range
12 - 54 W
Efficacy Range
121 - 148 LPW
Color Offering
Dark Bronze, Black, White, Gray
Optics & Distributions
Type IV
Controls & Sensors
0-10V Dimming, Button PE, Integral Sensor
Certifications
UL, cUL, IDA, DLC Standard, DLC Premium, Title 24, FCC
Ratings
RoHS, IP66, Wet, BAA
Operating Temp
-40 to 50 °C
Lumen Maintenance Rating
L90 @ 60,000 hours
Warranty
5 year limited warranty

Product Documents

Reflective Optics with Flat Glass Lens

Custom engineered optics for high uniformity with further throw. Optimized to have superior cut-off while limiting wasted light. These optics are enclosed in flat, tempered smooth glass surface which is less prone to dirt accumulation at a rate of 1% per year compared to 3.8% per year for non-glass molded lens.

Robust Mechanical Design

Fixtures are designed with scalable lumen levels. Vibration testing is performed in accordance with industry standards with fully sealed optical enclosures. 10kV/5kA is standard surge on all EWLS fixtures.

Emergency Lighting Options

Provides reliable emergency operation when there is a loss to normal power, supported by independent secondary battery. Illumination at required egress uniformity and light levels is achieved for a minimum of 90 minutes.

DLC qualified models available. Please refer to http://www.designlights.org/QPL for complete information.
