Tetra® Tape

Slim and flexible, it is ideal for applications as shallow as 1 inch and includes a self-adhesive backing, slashing installation labor costs.
cULus Damp Rated IP Rated

Features & Benefits

  • Quick and simple installation using clamp-on connectors (no soldering!)
  • Easy mounting with self-adhesive back – no screw attachments
  • Can be cut every 2 inches at marked points
  • Suitable for damp locations
  • Available in white, red, green, blue, and regular and high output (white only)
Design Tool
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
Regular Output, High Output
Voltage Offering
12V
CCT Offering
3500K, 4000K, 5000K, 6000K
Wattage Range
Per foot: 1.4 - 3.2 W
Color Offering
Blue, Green, Red, Warm White, White
Certifications
cULus, CE
Ratings
RoHS, IP66, Damp
Operating Temp
-40 to 60 °C
Warranty
3 year limited warranty

Product Documents

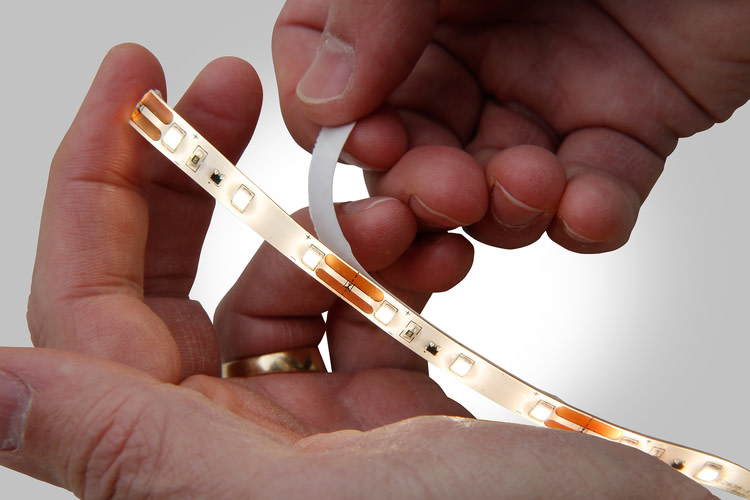

Hands pulling off backing of lit Tetra tape for installation

Simple Installation

Tetra® Tape includes a self-adhesive backing—which eliminates screw attachments, can be cut every two inches, and is available with electrical connectors that make installation a snap.

Flexible

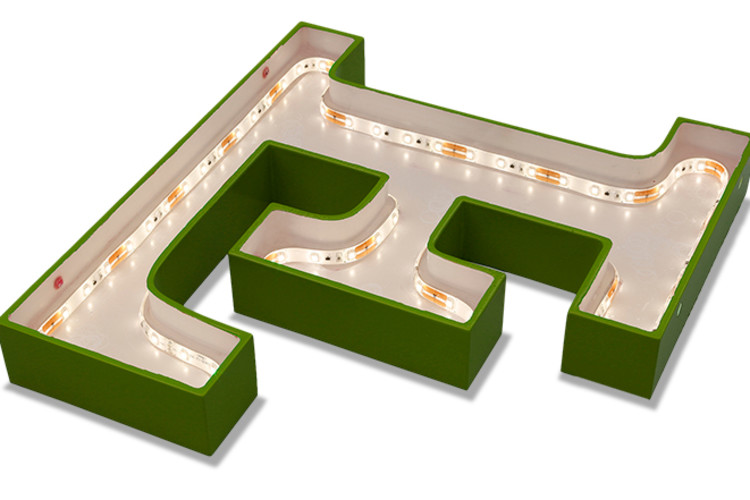

Designed for channel letter, backlit halo letter and routed acrylic block letter applications as shallow as 1 inch.

Let it Shine

Tetra® Tape is offered in both regular and high output versions for when more light is needed, delivering up to 329 lumens per foot.
