Tetra® LT

24V Performance. Everyday value. Tetra LT offers unparalleled levels of value and performance in channel letters of all sizes.
cULus 5 Year Warranty Damp Rated IP Rated

Features & Benefits

  • 24V loading at an everyday price offered in three different sizes: Shallow, Medium and Deep
  • OptiLens™ X creates a wide viewing angle and helps eliminate wasted light
  • Bright, uniform light distribution in four different CCTs
  • Works in applications shallow as 3 inches
  • Best-in-class efficacy of up to 167 lumens per watt
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
Deep, Medium, Shallow
Voltage Offering
24VV
Lumen Range
58 - 180lm
Lumens per Foot
120 - 252 lm/ft
CCT Offering
7100K, 6500K, 5000K, 4100K
Wattage Range
0.36 - 1.08 W
Efficacy Range
160 - 167 LPW
Color Offering
White
Optics & Distributions
Wide 170° beam angle
Certifications
CE, CSA, UL, UKCA
Ratings
RoHS, IP66, Damp, Dry, Wet
Operating Temp
-40 to 60 °C
Warranty
5 year limited warranty

Product Documents

Powerful OptiLens™ X

Tetra® LT features OptiLens™ X, our patented technology that allows for an incredible 170° viewing angle. This exclusive technology redirects otherwise wasted light to the sign face, making sure your signs shine.

Now Loading...

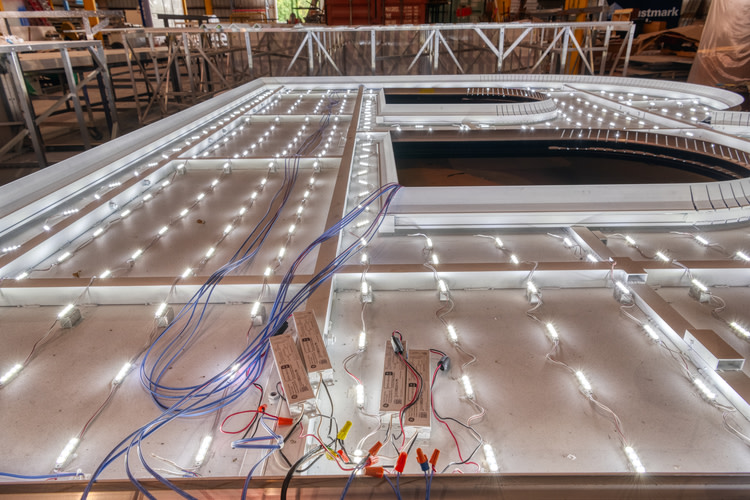

Load up to 120 feet (36.5 m) or 240 modules of 24V Tetra® LT Shallow per 100W power supply using our new and improved GLX2 power supplies.

Tetra LT Front View 1

Full Lineup

Tetra® LT, is offered in three sizes (Deep, Medium and Shallow) and four CCTs (7100K, 6500K, 5000K and 4100K) for any application.
