New

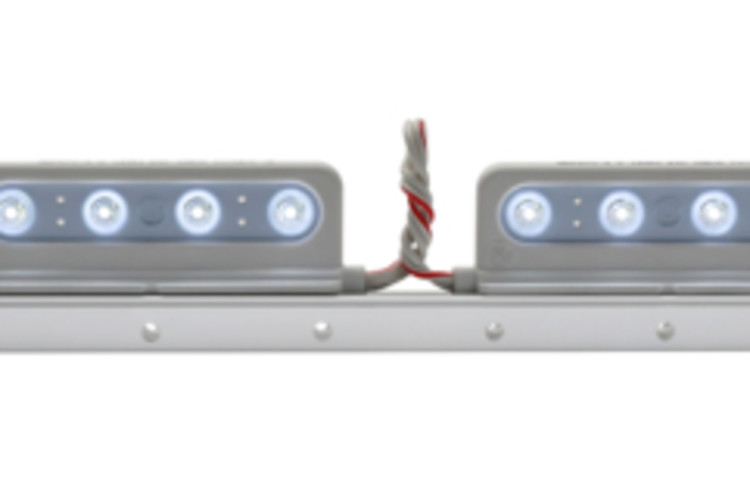

Tetra® Snap

Double-sided module that snaps into an extrusion, allowing brightness levels to be customized for cabinet signs from 10” to over 36” in depth.
cULus Damp Rated IP Rated 10 year warranty

Features & Benefits

  • Most flexible product on the market!
  • Reduce your labor - no screws or measuring necessary
  • Condense modules for applications requiring a little extra light – up to 1000 lm/ft!
  • 1 SKU = 3 different light output levels for cabinets 10” to over 36” deep
  • End caps secure to existing sockets or sign structure
  • Reduce your inventory by stocking the one product that does it all, from retrofit to new construction
Design Tool
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
Regular Output, High Output, Ludicrous Mode
Voltage Offering
24V
Lumen Range
600 - 1000lm
CCT Offering
3200K, 4100K, 5000K, 5700K, 6500K, 7100K
Mounting Options
Tetra Snap Rail, Frame endcap, Socket endcap
Efficacy Range
153 LPW
Color Offering
White, Warm White
Optics & Distributions
Viewing angle: 170°
Certifications
cULus, CE
Ratings
RoHS, IP66, Damp
Operating Temp
-40 to 60 °C
Warranty
10 year limited warranty

Product Documents

Bright as a New Penny

Tetra Snap modules pump out 400 lumens each, and can be installed at three different spacings, for a maximum 1000 lumens per foot. No other cabinet sign product comes close.

One Product to Rule Them All

The most flexible product on the market, Tetra Snap is suitable for cabinets ranging from 10” to well over 36” in depth, all with the same material.

Load 'Em Up

Load 32 Tetra Snap modules per 100W power supply, enough to light a single 64” x 80” sign. 1 bag = 32 modules = 1 power supply. Easy as that.

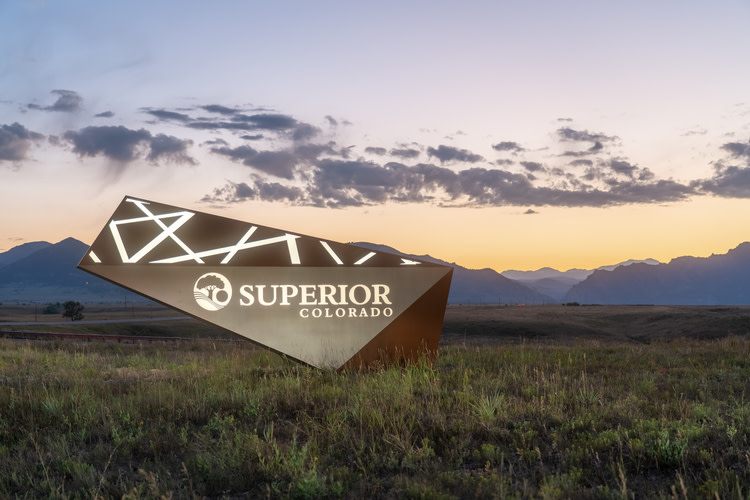

Application Photos
