Evolve® EALS

The EALS is ideal for commercial property site-lighting with various mounting options, up to 30,000 lumens and a robust design that allows flexibility.
Daintree Wireless Lighting Controls Icon DLC Premium DLC Standard cULus UL 5 Year Warranty Assembled in USA BAA NOM IDA IP Rated Title 24 RoHS

Features & Benefits

  • Daintree® Wireless Controls options for code compliance and additional energy savings
  • Flat glass lens with optimized reflective optics
  • Extremely light weight at 27lbs.
  • Universal Mounting Arm for round or square pole applications
  • 3G Vibration rated die cast housing
  • Corrosion resistance polyester powder paint
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Product Technology
Daintree®
Voltage Offering
120-277V, 277-480V, 347-480V
Lumen Range
7,000 - 30,300lm
CCT Offering
3000K, 4000K, 5000K
CRI Offering
70
Mounting Options
Integral Slipfitter, Universal Mounting Arm, Knuckle Slipfitter, Knuckle Wall Mount
Wattage Range
46 - 239 W
Efficacy Range
126 - 160 LPW
Color Offering
Black, Dark Bronze, Gray, White
Optics & Distributions
Type V, Type IV, Type III, Type II
Controls & Sensors
0-10V Dimming, 7-pin PE Receptacle, Integral Sensor, Daintree Integral Sensor
Certifications
UL, cUL, IDA, DLC Standard, DLC Premium, Title 24, FCC
Ratings
RoHS, IP65, Wet, BAA
Operating Temp
-40 to 40 °C
Lumen Maintenance Rating
L88 @ 60,000 hours
Warranty
5 year limited warranty

Product Documents

Brochures / Catalogs

IES

Installation Guides

Warranties

Office with lines showing connections for intelligent controls

Intelligent Controls

Daintree Wireless Controls provide out-of-the-box integration with for enhanced functionality and energy savings. Daintree Wireless Controls provides additional energy savings and the infrastructure to grow into the world of IoT today, or in the future.

Reflective Optics with Flat Glass Lens

Custom engineered optics for high uniformity with further throw. Optimized to have superior cut-off while limiting wasted light. These optics are enclosed in flat, tempered smooth glass surface which is less prone to dirt accumulation at a rate of 1% per year compared to 3.8% per year for non-glass molded lens.

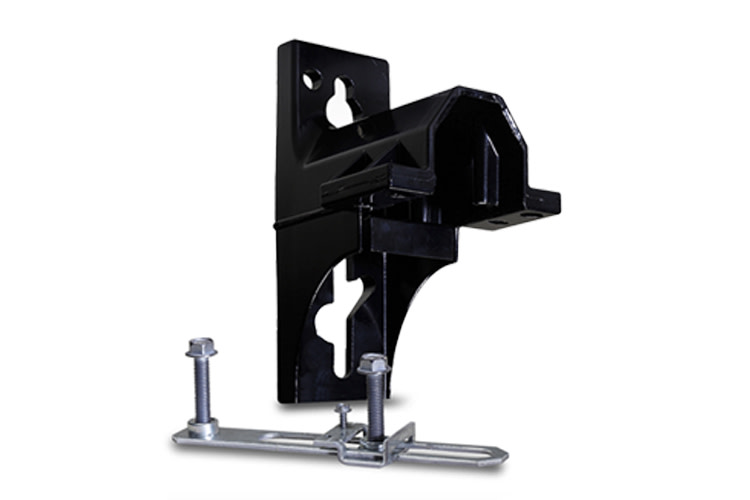

Universal Arm Mount

Accommodates round or square pole installations with a slide feature that enables universal bolt pattern. The key-hole feature allows the fixture to rest on the pole and simplifies installation.
