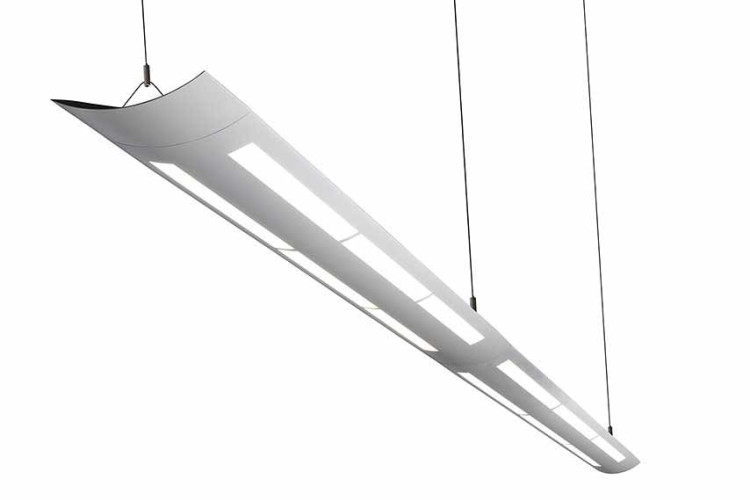

Lumination® SS

Commercial suspended indirect/direct fixtures that integrate into the ceiling either stand alone or continuous, with high performance from TriGain® technology.
Daintree Wireless Lighting Controls Icon TriGain cULus 5 Year Warranty TAA RoHS

Features & Benefits

  • TriGain® Technology for industry leading color quality with no efficacy loss
  • Dimmable for code compliance and additional energy savings
  • Emergency egress lighting with battery back-up and additional branch circuit options
  • Versatile options and contemporary aesthetic for design flexibility
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Product Technology
TriGain®
Family Modules/Configurations
4ft, 8ft, Continuous
Voltage Offering
120-277V, 347V
Lumen Range
3,600 - 11,500lm
CCT Offering
3000K, 3500K, 4000K
CRI Offering
83, 90 TriGain®
Mounting Options
Suspended
Wattage Range
26 - 89 W
Efficacy Range
134 - 139 LPW
Color Offering
White
Optics & Distributions
Uplight/Downlight ratio: 75% / 25%
Controls & Sensors
0-10V Dimming
Certifications
cULus, FCC
Ratings
RoHS, IP20, Dry, TAA, USMCA
Operating Temp
-10 to 35 °C
Lumen Maintenance Rating
L85 @ 50,000 hours
Warranty
5 year limited warranty

Product Documents

Bins of brightly colored fruit at a supermarket

Superior Color Quality With No Efficacy Loss

Current’s TriGain® technology, with its patented narrow-band red emission, provides best-in-class color & efficiency. With trends in color quality towards preference in fidelity & saturation, ANSI/IES TM-30 provides an alternative to CRI. Few light sources can meet the criteria in TM-30 Annex E, and TriGain® technology stands alone as the only to do so with high efficacy.

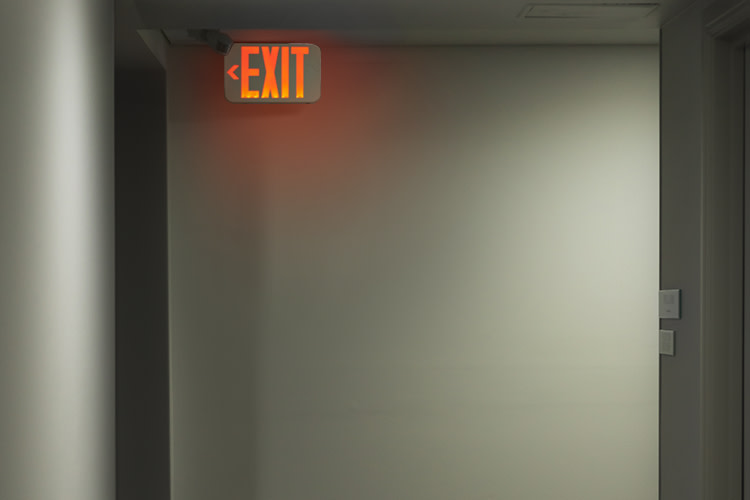

Emergency Lighting Options

Emergency egress lighting option is available with two choices, either emergency battery back-up for most configurations, or a separate branch circuit for long continuous runs. The luminaire is provided with an additional red conductor for the unswitched line to the EMBB units. The branch circuit option is easy to install with quick electrical connections between fixtures.

Man and woman working at computer

Configurable For Flexible Design Specifications

The Lumination® SS series luminaires are available as stand-alone 4-foot or 8-foot fixtures or longer continuous runs. Continuous runs have quick electrical and mechanical connections, making installation easy while keeping the runs straight. End caps have two aesthetic options to choose from in bull nose or spade.

Application Photos

Commercial office with suspended Lumination fixtures
Commercial office with suspended Lumination fixtures
