New

Lumination® LIB

The LIB is a compact and efficient fixture designed for easy & fast install. Ideal for a variety of applications: storage closets, over/under shelving and more.
ProLine QuickShip cULus 5 Year Warranty Damp Rated RoHS

Features & Benefits

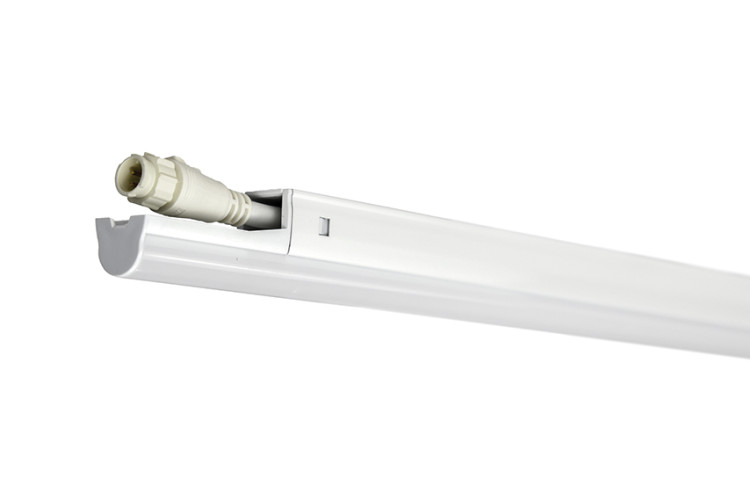

  • Custom push-and-lock connector easily aligns and connect fixtures for FAST and EASY installation
  • Best-in-class push-and-lock connector ensures fixtures stay together for a reliable and safe connection - eliminate the nuisance of fixtures coming apart after installation
  • Low profile design to illuminate your space cleanly
  • Smooth, uniformly lit lens with no pixelation provides an even 180° distribution
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
2ft, 3ft, 4ft, Continuous
Voltage Offering
120V
Lumen Range
1,500 - 3,000lm
CCT Offering
3500K, 4000K
CRI Offering
80
Mounting Options
Ceiling, Cove, Surface, Suspended
Wattage Range
10.6 - 20.6 W
Efficacy Range
142 - 145 LPW
Color Offering
White
Optics & Distributions
180° Wide Distribution
Controls & Sensors
No Dimming
Certifications
cULus, FCC
Ratings
RoHS, IP20, Damp
Operating Temp
0 to 35 °C
Lumen Maintenance Rating
L70 @ 50,000 hours
Warranty
5 year limited warranty

Product Documents

Man on ladder cutting round ceiling hole

Simple & Speedy Installation

The LIB Series is designed for any in-bay applications while providing maximum ease of install. Select from an array of mounting options from universal clip-in brackets to magnetic mounts and variable connecting link cords for bay-to-bay connections. LIB fixtures also come with integrated driver and dovetail mating to provide ease of alignment for continuous run installation.

Robust Mechanical Design

The LIB Series is designed with safety first in mind. In order to adapt to high traffic environments, the connector is independent of the body luminaire, with dovetail connections acting as strain relief. To put in simpler terms, the LIB comes with a UL listed fretting resistant connector that compensates any strain or vibration on the luminaire, providing you with peace of mind when stocking the shelves.

to demonstrate the slim and low profile a side angle shot shows a hand holding a light thinner than the width of the hand
Man on ladder cutting round ceiling hole

Reliability You Can Count On

Current's Engineering team prioritizes quality and reliability as #1 in every design. The heartbeat components, LEDs and power supplies, are the main focus when we design and validate our fixtures. What does this mean? You will have peace of mind that a job with Current fixtures is one done right and is built to last. Additionally, 100% of fixtures are tested on the line for critical parameters

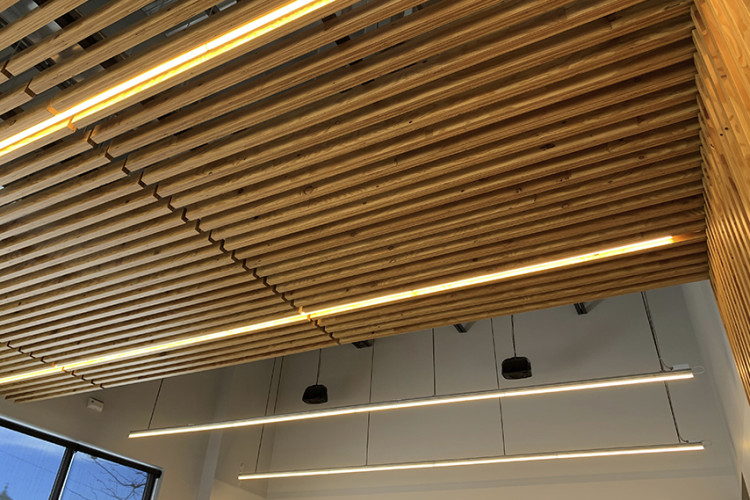

Application Photos
