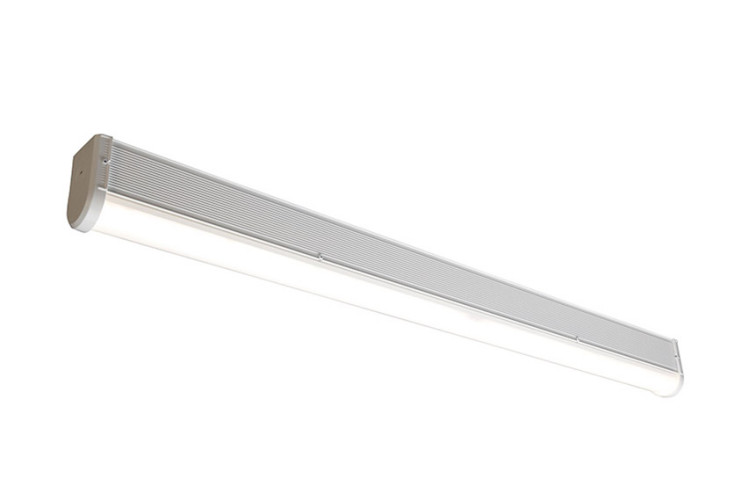

Albeo® ALC

ALC is an efficient alternative to less decorative linear fixtures for a variety of commercial/industrial, low bay, stairwell uses with many controls options.
Daintree Wireless Lighting Controls Icon TriGain DLC Standard cULus 5 Year Warranty TAA Damp Rated Controls Enabled Title 20 Title 24 RoHS

Features & Benefits

  • Daintree® Wireless Controls options for code compliance and additional energy savings
  • Daylight and motion sensors available
  • Continuous run with through wiring
  • Integral Emergency Backup
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Product Technology
Daintree®
Family Modules/Configurations
4ft, 8ft
Voltage Offering
120-277V, 347V, 480V
Lumen Range
2,000 - 20,000lm
CCT Offering
3000K, 3500K, 4000K, 5000K
CRI Offering
80, 90
Mounting Options
Suspended
Wattage Range
14 - 173 W
Efficacy Range
121 - 160 LPW
Color Offering
White
Optics & Distributions
120° Diffused Lens, 160° Wide Clear Parking Garage Optic
Controls & Sensors
0-10V Dimming, Integral Sensor, Daintree Integral Sensor, Daintree Wireless Enabled
Certifications
cULus, DLC Standard, FCC
Ratings
RoHS, Damp, TAA
Operating Temp
-40 to 50 °C
Lumen Maintenance Rating
L70 @ 100,000 hours
Warranty
5 year limited warranty

Product Documents

Bins of brightly colored fruit at a supermarket

Superior Color Quality with No Efficacy Loss

Current’s TriGain® technology, with its patented narrow-band red emission, provides best-in-class color & efficiency. With trends in color quality towards preference in fidelity & saturation, ANSI/IES TM-30 provides an alternative to CRI. Few light sources can meet the criteria in TM-30 Annex E, and TriGain® technology stands alone as the only to do so with high efficacy.

Intelligent Controls

Daintree® Wireless Controls provide out-of-the-box integration for enhanced functionality and energy savings. From integrated sensor stand alone and room control options, to complete networked systems, Daintree Wireless Controls provide additional energy savings and simple, quick setup. Remote commissioning for networked systems and the infrastructure to grow into the world of IoT today, or in the future are at the heart of Daintree systems.

Office with lines showing connections for intelligent controls
Man holding building plans shaking hands with female contractor

Reliability You Can Count On

Our Engineering team prioritizes quality and reliability as #1. Heartbeat components like LEDs and drivers, are the key focus for design and validation. You will have peace of mind that a job with Current fixtures designed for total cost of ownership over the lifetime are used. With drivers designed with 10 year, 100,000 hour components, you can expect a B0 failure rate (designed for zero failures at ten years) for these luminaires.

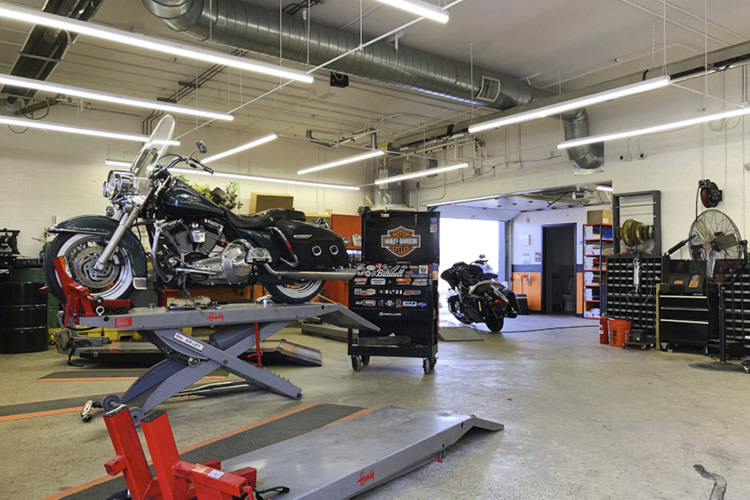

Application Photos

Related Products

Daintree WHR1 Wireless Lighting Controls Remote

Daintree® WHR1

The WHR1 Wireless Handheld Remote is a commissioning tool using two-way infrared communication with Daintree® WHS20 Wireless Sensors in Albeo® High Bay lighting.
View Product

DLC qualified models available. Please refer to http://www.designlights.org/QPL for complete information.
