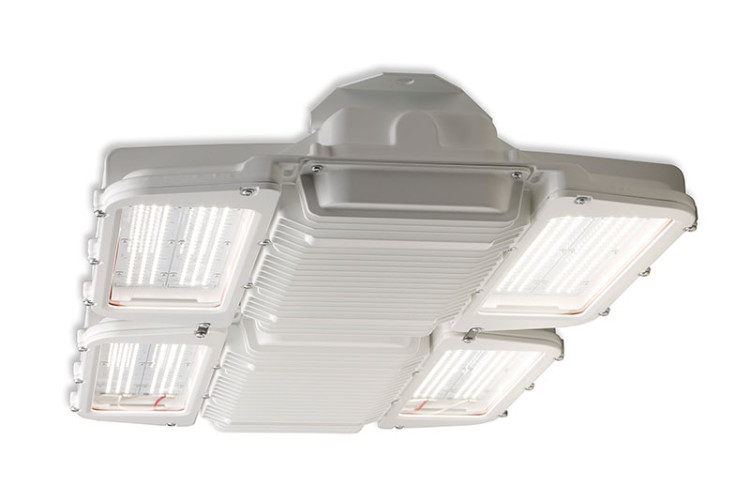

Albeo® AHH

The AHH is an IP66 and hazardous class rated fixture that offers a rugged design with exceptional performance and reliability at high ambient temperatures.
DLC Standard cULus 5 Year Warranty TAA Hazardous Environments IP Rated RoHS

Features & Benefits

  • Ideal for demanding and hazardous environments
  • Operates in environments up 65° C
  • Light weight and easy installation
  • Modular design for single or double fixture option
  • With up to 60,000 lumens, AHH serves as an ideal replacement in high ceiling applications
  • Optional corrosion resistant finish
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
Single Fixture or Double Fixture
Voltage Offering
120-277V, 347V, 480V
Lumen Range
9,000 - 60,000lm
CCT Offering
4000K, 5000K
CRI Offering
70, 80
Mounting Options
Pendant
Wattage Range
55 - 418 W
Efficacy Range
138 - 165 LPW
Color Offering
White
Optics & Distributions
30°, 55°, 90°, 120°
Controls & Sensors
0-10V Dimming
Certifications
cULus, DLC Standard, Title 24, FCC
Ratings
RoHS, NEMA 4X, Wet, TAA, Hazardous Rated
Operating Temp
-30 to 60 °C
Lumen Maintenance Rating
L70 @ 100,000 hours
Warranty
5 year limited warranty

Product Documents

Hazardous Classifications

AHH fixtures are designed for various hazardous applications: Class I Division 2 Groups A, B, C & D

Robust Mechanical Design

Fixtures are designed with scalable lumen levels and multiple optical patterns that allow for various applications. With a 65° C temperature rating and standard surge of 6kV/3kA (optional 10kV/5kA or 20kV/10kA), the AHH is designed to perform in demanding applications.

Modular Design

Single and double fixture options to fit your needs.

Application Photos

DLC qualified models available. Please refer to http://www.designlights.org/QPL for complete information.
