Lumination® Contour

Flexible low-voltage LED system, providing the classic look of exposed neon for interior architectural applications. System is field-cuttable & bendable.
cULus 5 Year Warranty IP Rated Wet Rated

Features & Benefits

  • Dimmable for code compliance and provide additional energy savings
  • Energy efficient and maintenance free solution to classic neon
  • Versatile color options and contemporary aesthetic for design flexibility
  • Available for damp or wet location applications
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
8ft, Continuous
Voltage Offering
24DCV
Lumen Range
30 - 156lm
CCT Offering
2700K, 3000K, 3500K, 4000K, 5000K, 6500K, RGB colors
CRI Offering
80
Mounting Options
Ceiling, Cove, Corner, Surface, Wall
Wattage Range
1.79 - 3.73 W
Efficacy Range
17 - 67 LPW
Color Offering
White, Clear, Red, Blue, Yellow, Amber, Orange, Red-Orange
Optics & Distributions
115° Viewing angle - light engine only, 330° Viewing angle - light engine with guide
Controls & Sensors
0-10V Dimming
Certifications
cULus, FCC
Ratings
RoHS, IP54, IP66, Wet
Operating Temp
-40 to 55 °C
Lumen Maintenance Rating
L85 @ 50,000 hours
Warranty
5 year limited warranty

Product Documents

Solution to Classic Neon

Easy to install and nearly maintenance free, Lumination® Contour is a low voltage (24VDC) system and provides a solution to classic exposed neon in interior commercial and retail applications, either damp or wet. Durable with a flexible light engine and rigid, optically diffused light engine, Contour contains no lead, mercury or glass and is 40% more energy efficient than neon.

Configurable for Flexible Design Specifications

The Lumination® Contour light engine, which can be used alone, has many different colors, ranges of white, and the light guide has color options, white and clear. Also available are matching joiners, corner connections and other accessories. Both light engine and guide are field bendable and cuttable, and in total, this system provides a variety of design possibilities.

Man and woman working at computer

IP Rated for Tough Environments

When the Lumination® Contour flexible light engine is used as a stand-alone system, it is IP54 dry or damp location listed. When paired with the rigid light guide, Lumination® Contour is now an interior wet location IP66 rated system. Intended applications are for interior commercial and retail architectural lighting.

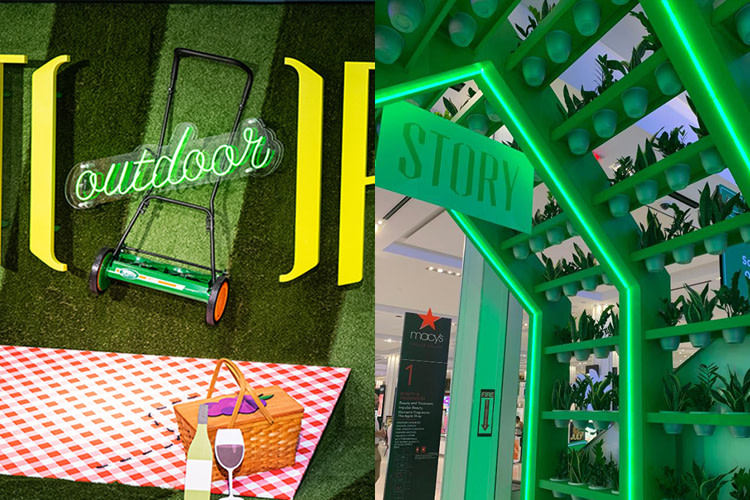

Application Photos
