365DisInFx LPU

Low-dosage LED UVC device for continuous disinfection in occupied spaces provides an additional measure in the inactivation of airborne viruses.

cULus Damp Rated RoHS

Features & Benefits

  • First UL-Certified direct LED UVC luminaire for occupied spaces.
  • Helps in the inactivation of aerosolized viruses as an additive measure in a total disinfection plan.
  • Low dosage UVC device is designed for continuous 24 operation in areas where people are present and operates without the need for controls.
  • Complies with human exposure limits per IEC 62471 Photobiological Safety of Lamps and Lamp Systems standards and American Conference of Governmental Industrial Hygienists (ACGIH®) TLVs® guidelines when installed as directed.
  • Compact size (5” diameter x 1.2” width) is similar in appearance to a smoke detector and allows integration into the existing ceiling infrastructure for minimum ceiling height of 8.5’.
  • UVC is invisible to the human eye and the distributed UVC pattern covers approx. 50 sq ft at typical mounting height of 10’.

SPECIFICATIONS

UV Range
UVC
UV Output
254nm ± 5nm
Product Technology
365DisInFx™
Family Modules/Configurations
Round, 5” Diameter, Single and Bulk pack
Voltage Offering
120-277V
Mounting Options
Ceiling, Surface
Wattage Range
3.88 W
Color Offering
White
Optics & Distributions
Point Source
Controls & Sensors
No Dimming
Certifications
cULus, FCC
Ratings
RoHS, Damp
Operating Temp
-20 to 25 °C
Warranty
1 year limited warranty

Compliant

Current is certified through UL’s Data Acceptance Program (DAP) to perform testing to the IEC 62471 safety standard with products meeting IEC 62471 Photobiological Safety for Lamps and Lamp Systems standard and American Conference of Governmental Industrial Hygienists (ACGIH®) TLVs® for human exposure to UV. The LPU UVC puck is the first UL-Certified direct LED UVC luminaire for occupied spaces. In addition, Current conducts third party testing to substantiate our claims and validate our predictive models. *See Test Results for supporting detail.

Continuous

Flexible LED solutions for 24-hour occupancy with UV dosage designed to operate below human health exposure limits providing an added layer of protection along with masks, hygiene and social distancing.

Ease of Operation

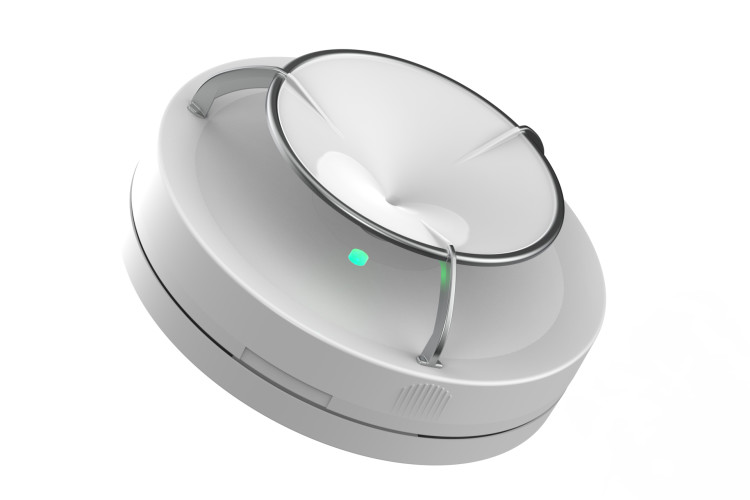

The LPU is compact in size (5” diameter x 1.2” width) and similar in appearance to a standard smoke detector. Simple operation does not require additional controls and includes user friendly indicator lights showing operation status.

Make an Informed Decision

  • UV radiation can pose a risk of personal injury. Overexposure can result in damage to eyes and bare skin. To reduce risk of overexposure, equipment must be installed in accordance with manufacturer’s site planning and application recommendations, including minimum ceiling height restrictions.
  • UV solutions are intended for common high traffic spaces and not recommended for dwellings or home use.
  • Installation of the devices should be performed by qualified professionals as detailed in Current’s installation guide.
  • To allow for occupancy during use, Current products comply with IEC 62471 – Photobiological Safety of Lamps and Lamp Systems standards and American Conference of Governmental Industrial Hygienists (ACGIH®) TLVs® guidelines when installed as directed.
  • Current’s UV products are meant to be used in conjunction with other protective measures like manual cleaning and the use of proper PPE. They are not a substitute for other measures.
  • Current products are not intended for use as a medical device.
  • If combining two or more UV solutions, whether from GE Current, a Daintree company and/or other manufacturers, please consult a trained product application representative to ensure the total irradiance (UV dose) does not exceed recommended human exposure limits. To the extent UV solutions are combined, it may impact inactivation rates.

UVC Testing, Lab Results & Notes

Current has completed in-situation testing with 365DisInFx™ UVC disinfection technology LPU Series devices on the aerosolized virus, bacteriophage MS2. Bacteriophage MS2 is a nonenveloped virus that is commonly used as a surrogate for viruses that are pathogenic to humans. Bacteriophage MS2 is generally understood to be more resistant than enveloped viruses (which include coronaviruses) to UVC.

The bacteriophage MS2 testing resulted in an 88% inactivation of the aerosolized virus in a 10’ x 10’ room in 4 hours.

Based on these bacteriophage MS2 results, Current predicts the continuous of operation of the 365DisInFx™ LPU will provide a 1-log reduction (90%) in less than 3 hours and a 2-log reduction (99%) in less than 6 hours for seasonal coronaviruses and SARS-CoV-2 in a typical room application.
