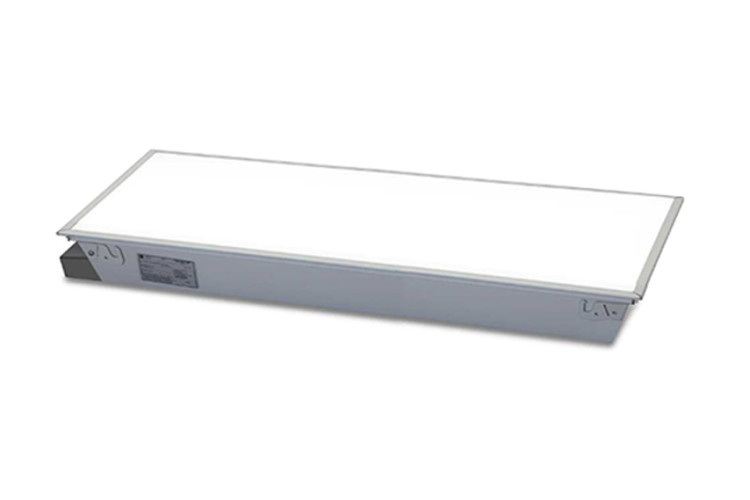

365DisInFx™ LBU

Efficient LED recessed fixture with 365DisInFx LED UVA technology for helping in the continuous inactivation of surface bacteria in occupied spaces.
Daintree Wireless Lighting Controls Icon cULus 5 Year Warranty TAA Damp Rated Controls Enabled RoHS

Features & Benefits

  • Helps reduce the potential spread of bacteria, mold and fungi on surfaces in occupied spaces
  • Demonstrated inactivation rates of up to 99.7% in 8hrs when tested with several common pathogens including MRSA, E. faecalis, and E. coli.
  • Meets IEC 62471 Photobiological Safety for Lamps and Lamp Systems standard and American Conference of Governmental Industrial Hygienists (ACGIH®) TLVs® guidelines for human exposure to UV
  • 365nm UVA light emitted is invisible to the human eye and does not impact CCT or CRI
  • LED white light source may be controlled by wired or wireless controls and is dimmable to 5%
  • High efficiency recessed family of fixtures in range of sizes with white light LED performance and >80+ CRI
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

UV Range
UVA
UV Output
365nm ± 5nm
Product Technology
365DisInFx™
Family Modules/Configurations
1x4, 2x2, 2x4
Voltage Offering
120-277V
Lumen Range
2,000 - 6,000lm
CCT Offering
3500K, 4000K
CRI Offering
80
Mounting Options
Recessed
Wattage Range
16 - 46 W
Color Offering
White
Optics & Distributions
Medium Lambertian
Controls & Sensors
0-10V Dimming
Certifications
cULus, FCC
Ratings
RoHS, Damp, USMCA, TAA
Operating Temp
-20 to 25 °C
Lumen Maintenance Rating
L85 @ 50,000 hours
Warranty
5 year limited warranty

Product Documents

Compliant

Current is certified through UL’s Data Acceptance Program (DAP) to perform testing to the IEC 62471 safety standard with products meeting IEC 62471 Photobiological Safety for Lamps and Lamp Systems standard and American Conference of Governmental Industrial Hygienists (ACGIH®) TLVs® for human exposure to UV.

Continuous

Flexible LED solutions for 24-hour occupancy with UV dosage designed to operate below human health exposure limits providing an added layer of protection along with masks, hygiene and social distancing.

Test Driven

UVA products are UL 1598 certified. In addition, third-party testing substantiates technical claims and validates predictive models. Current continues to expand testing to verify effectiveness against additional pathogens. *See Test Results for supporting detail.

Make an Informed Decision

  • UV radiation can pose a risk of personal injury. Overexposure can result in damage to eyes and bare skin. To reduce risk of overexposure, equipment must be installed in accordance with manufacturer’s site planning and application recommendations, including minimum ceiling height restrictions.
  • UV solutions are intended for common high traffic spaces and not recommended for dwellings or home use.
  • Installation of the devices should be performed by qualified professionals as detailed in Current’s installation guide.
  • To allow for occupancy during use, Current products comply with IEC 62471 – Photobiological Safety of Lamps and Lamp Systems standards and American Conference of Governmental Industrial Hygienists (ACGIH®) TLVs® guidelines when installed as directed.
  • Current’s UV products are meant to be used in conjunction with other protective measures like manual cleaning and the use of proper PPE. They are not a substitute for other measures.
  • Current products are not intended for use as a medical device.
  • If combining two or more UV solutions, whether from GE Current, a Daintree company and/or other manufacturers, please consult a trained product application representative to ensure the total irradiance (UV dose) does not exceed recommended human exposure limits. To the extent UV solutions are combined, it may impact inactivation rates.

UVA Testing, Lab Results & Notes

365DisInFx™ UVA disinfection technology was tested using in-vitro methods (as described in Livingston, Kvam1,2) which resulted in 99.7% reduction in MRSA on surfaces exposed to 3W/m2 of 365nm UVA over a single 8-hour period. Results of this testing also showed significant reduction over a similar exposure period of certain common pathogens including Staphylococcus aureus, Enterococcus faecalis, Escherichia coli, Acinetobacter baumannii, Pseudomonas aeruginosa, Candida albicans and auris, associated with Hospital Acquired Infections (HAIs). Photobiological science and mathematical modeling enables us to calculate expected inactivation rates for 24-hour continuous operation of the 365DisInFx™ UVA technology.

Notes & Citations:

1 Livingston SH, Cadnum JL, Benner KJ, Donskey CJ (2020) Efficacy of an ultraviolet-A lighting system for continuous decontamination of health care-associated pathogens on surfaces. Am. J. Infect. Control 48: 337-339.
https://doi.org/10.1016/j.ajic.2019.08.003

  • inoculated steel disk carriers, modification of ASTM E-2197-02
  • using a benchtop device that delivered the 3W/m² irradiance

2 Kvam E, Benner K (2017) Disinfection via LED Lighting: summary of mechanism and results for 365nm-mediated inactivation of microbes. GE Global Research Technical Information Series
2017GRC0545, GE Confidential (Class 3)
Kvam E, Benner K. Mechanistic insights into UV-A mediated bacterial disinfection via endogenous photosensitizers. Journal of Photochemistry and Photobiology B: Biology. 2020;209:111899. doi:10.1016/j.jphotobiol.2020.111899.

  • inoculated steel disk carriers, modification of ASTM E-2197-02
  • using a benchtop device that delivered the 3W/m² irradiance

24-hour dosage is designed to operate below human health exposure limits per IEC 62471 Photobiological Safety for Lamps and Lamp Systems standard and American Conference of American Hygienists (ACGIH®) TLVs® guidelines.
Product is safe for use in the presence of people for continuous (24h) exposure under IEC photobiological safety standard 62471.
