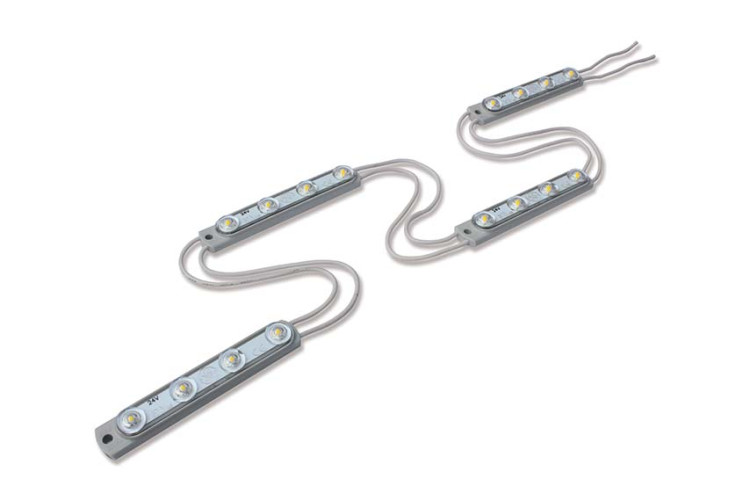

Tetra® PowerMAX

Powerful 24V LED solution for large channel letters from 3” (76mm) to over 6” (152mm)deep. 24V PowerMAX improves loading by 128% compared to 12V products.
cULus 5 Year Warranty IP Rated Wet Rated

Features & Benefits

  • Best-in-class loading reduces material and labor cost
  • OptiLens™ X creates bright, uniform light distribution in large channel letters
  • Works in applications shallow as 4 inches (102mm)
  • Continuous wire and IDC connectors for maximum strain relief
  • Easy install with pre-drilled mounting holes and industrial-grade mounting tape
Design Tool
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
24V Tetra PowerMAX, 24V Tetra PowerMAX HO
Voltage Offering
24 V
CCT Offering
3200 K, 4100 K, 5000 K, 5700 K, 6500 K, 7100 K
Efficacy Range
143 - 158 LPW
Color Offering
White, Warm White
Optics & Distributions
Wide 170° beam angle
Ratings
Wet, RoHS, IP66
Operating Temp
-40 to 60 °C

Product Documents

Brochures / Catalogs

SIGN120-Signage-Catalog
26999 KB
2023-11-29

Technical Documents

Warranties

BEST-IN-CLASS LOADING

The 24V Tetra® PowerMAX loading improves 128% from the previous 12V generation. Now load up to 64 feet (19.5 m) or 96 modules of product per Current 100W power supply.

IMPROVED STROKE SPACING

24V Tetra® PowerMAX stroke spacing has improved on average by 35%, requiring less product, thanks to the wide OptiLens™ X beam angle. 24V Tetra® PowerMAX stretches spacing to an impressive 14 inches (356 mm) at a 5-inch (127 mm) depth, while maintaining remarkable uniformity on the sign face. It protects customers' brand image while reducing product costs and saving installation time.

Legendary quality

We perform the most extensive, stringent testing in the industry. We test the LED, water and dust ingress protection, sub-system and complete system at our in-house and independent laboratories around the world. Validation of our designs, components, products and processes include high temperature, high humidity and accelerated life testing.
