Coming Soon

Select TX® Cuttable Light Bar

The Light Bar can be cut every 3¼”/83mm, allowing signmakers to create indoor illuminated signage and displays that fit their vision.

cULus IP Rated

Features & Benefits

  • Wide 160° lens to ensure excellent uniformity, even at shallow depths
  • Bar can be cut between each diode to fit any application
  • Aluminum PCB for enhanced thermal dissipation and longer LED life
  • Fast and easy installation with universal connectors and accessories
  • Lower overall cost of ownership through energy and module efficiencies

Specifications

Voltage Offering
24V
Lumen Range
1080lm
CCT Offering
6500K
CRI Offering
80
Wattage Range
10.8 W
Efficacy Range
100 LPW
Color Offering
White
Optics & Distributions
160° viewing angle
Ratings
RoHS, IP20, Dry
Operating Temp
-25 to 60 °C
Warranty
5 year limited warranty

Product Documents

Flexible

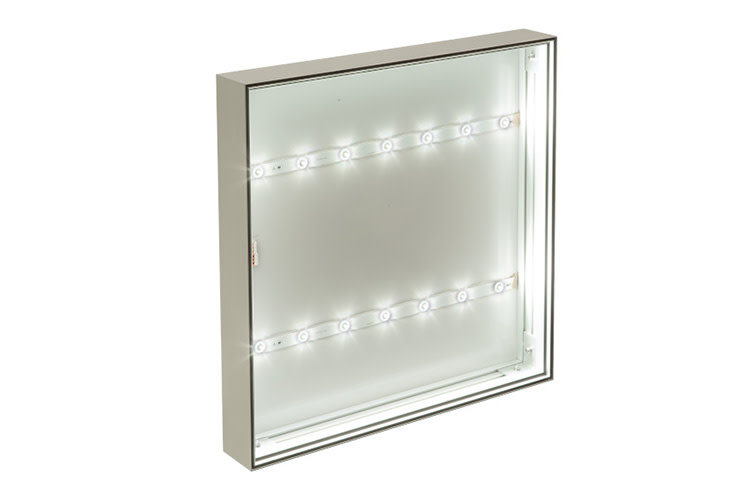

This product has a total length of 45 ¾” (1162mm) and can be cut every 3¼” (83mm) to separate each of the 14 individual LED modules. Universal connectors at either end making it easy to link shorter lengths or individual modules, allowing sign makers to create custom lengths to perfectly illuminate indoor box signs as shallow as 2” (50mm).

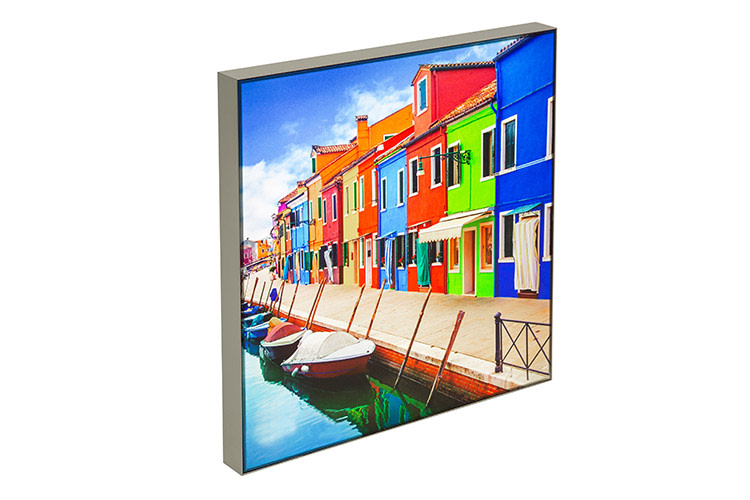

Make Your Brand Shine

The light emitted from each LED is distributed across a wide 160-degree angle, creating a beautifully smooth, uniform illumination. Thanks to a high CRI of >80 and neutral 6,500K colour temperature, colours will be accurate and true, for a stunning effect that presents a brand in its very best light.

Legendary Quality

An aluminum PCB offers enhanced thermal dissipation to prolong the life of each LED module, offering a standard lifespan of 50,000 hours and reducing the risk of failure beyond the five-year warranty. The amount of heat produced is significantly low, making our lightbars perfect for applications involving fabric or similar sensitive materials.
